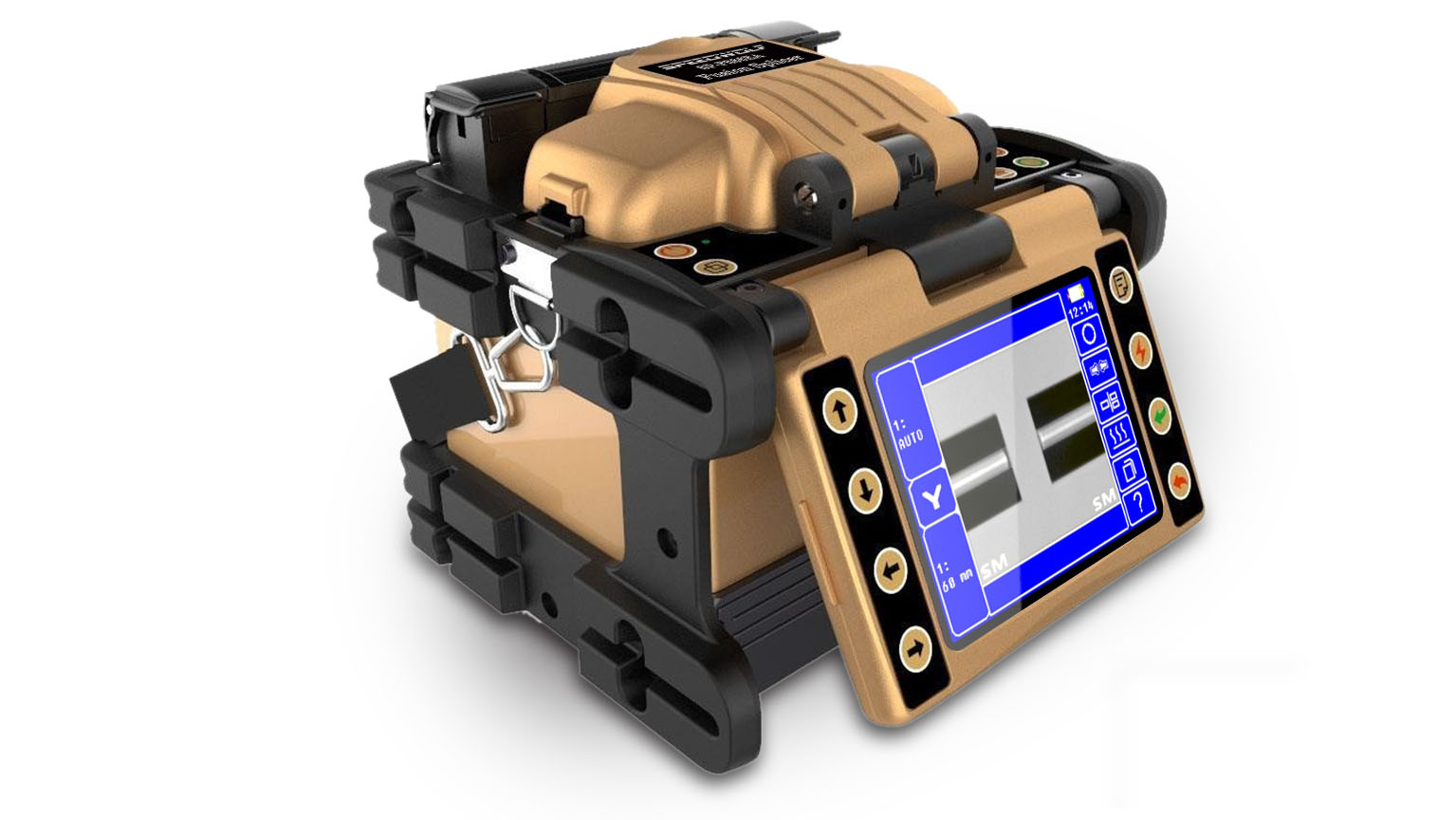

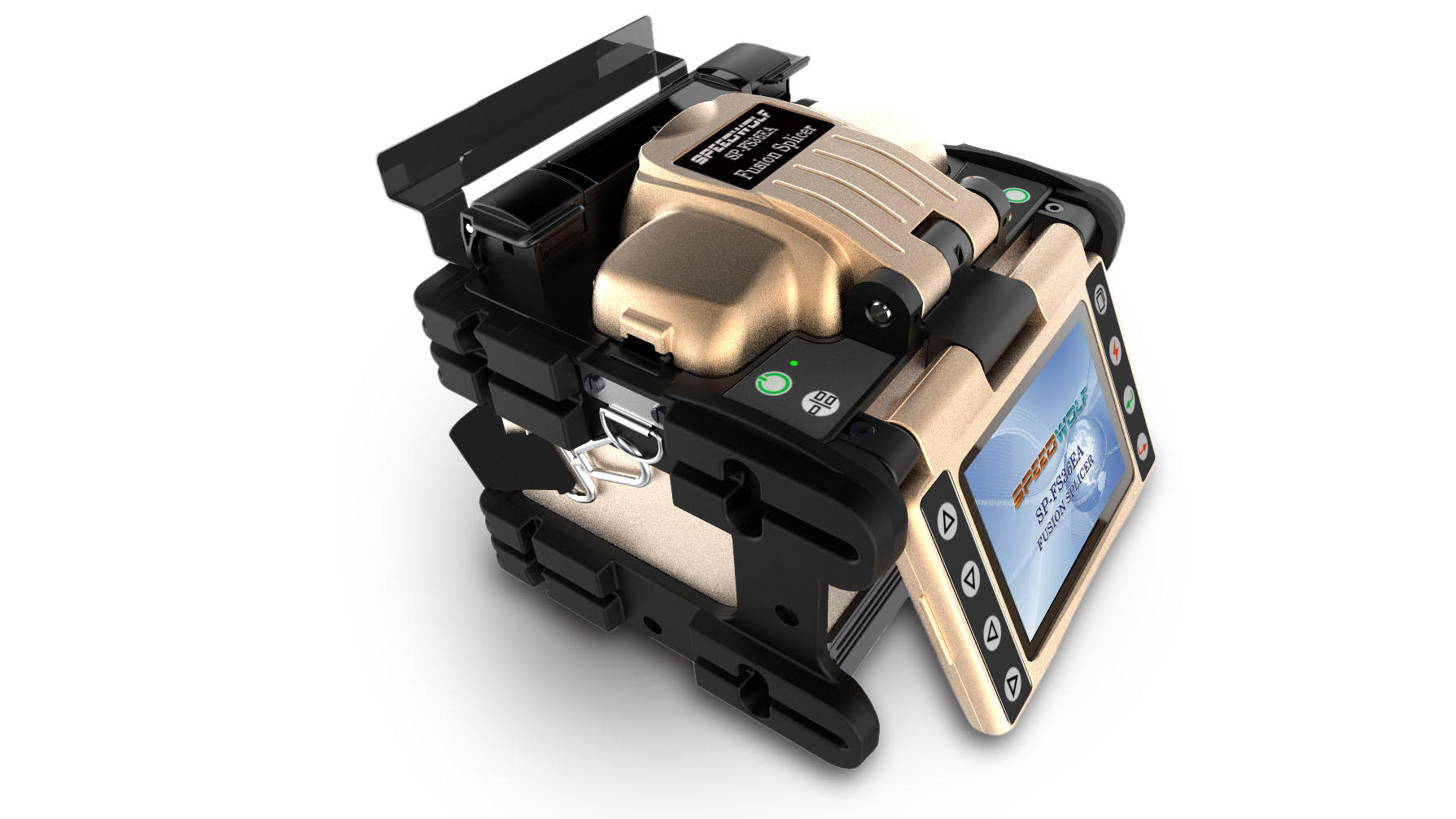

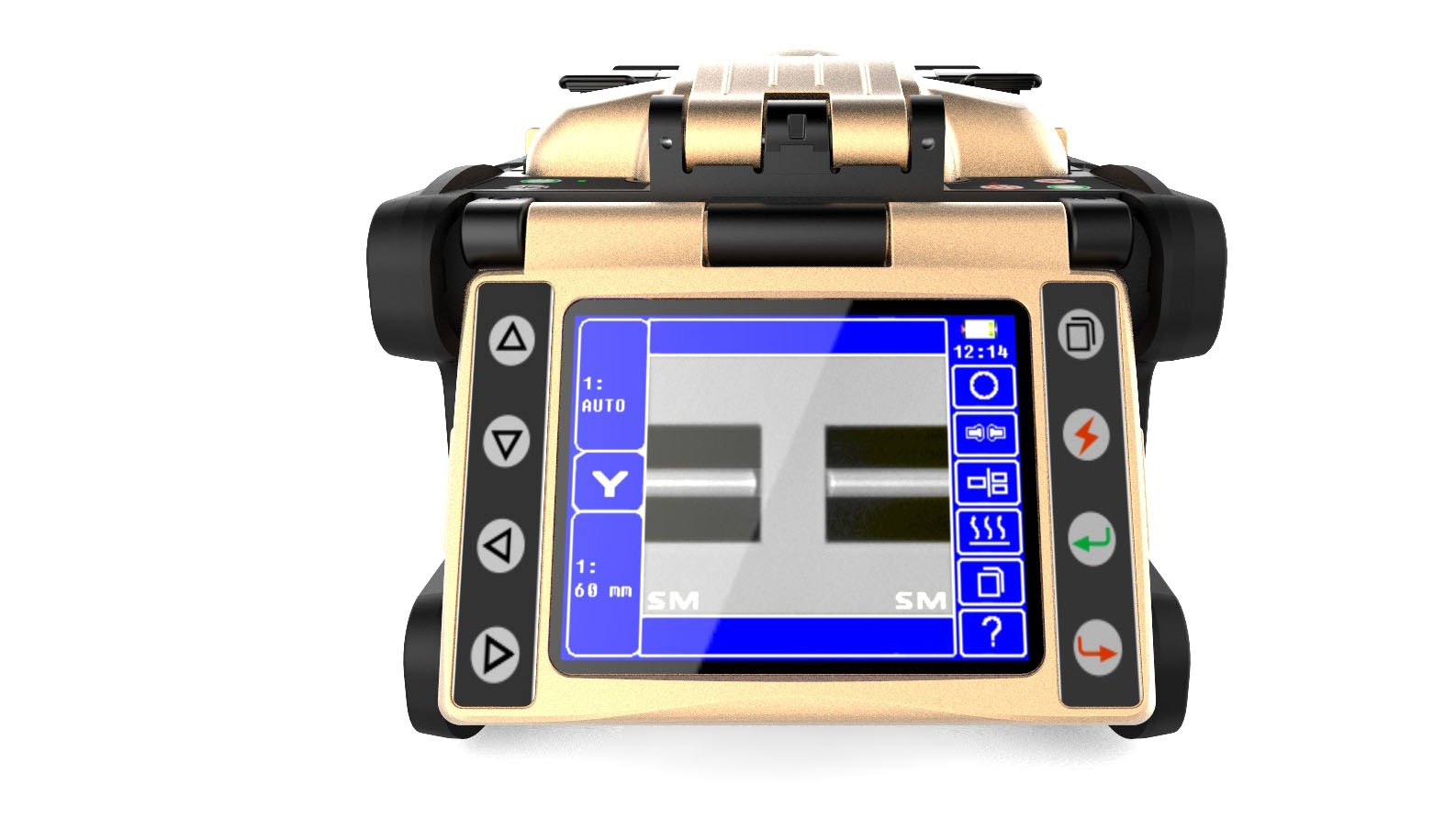

SP-FS36EA optical fiber fusion splicer is designed with high-speed image processing technology and special precision-positioning technology. It will aut omatically finish the whole fiber fusion process in 9 seconds by fast mode, and splice loss is lower tha n 0.02dB for single mode fiber. 3.5-inch LCD, dual CMOS monitors, X and Y axis separately display or simultaneously display, thus different fusion stages can be showed clearly. It is compa ible with IT U-T SM/MM/DS/NZDS/ED fiber, and is equipped with 4-in-1 holders and SOC adapter.


         Product Features

  • Four motors, special precision-positioning technology
  • Splice Loss: SMF/BIF: ≤0.02dB(typ.); MMF: ≤0.01dB(typ.); DSF/NZDSF/EDF: ≤0.04dB(typ.)
  • High precision 4-in-1 holder (250μm/900μm/patch cord/FTTx indoor fiber etc), SOC holder
  • Unique battery and the host separation design, convenient maintenance and replacement of the battery
  • High strength portable straps design is convenient for hanging and operating
  • Inner light make the operation environment in the dark
  • Between X/Y single screen and X&Y easily switch
  • 76cm drop proof / ISTA certificate
  • ≤9s splicing time, ≤36s heating time (adjustable)
  • Ready-package battery with electric quantity indicator, convenient carrying a nd change


PARAMETER PACKAGES DOWNLOAD CONTACT US

PARAMETER

Model SP-FS36EA Optical Fiber Fusion Splicer
Display 3.5 inch Color LCD,   X/Y / X / Y, A uto turn-over
Dimension 125×125×135mm(L×W×H)(witho ut rubber boot)
Weight 1.2kg (without battery) / 1.5kg(with battery)
Fiber Type SMF(ITU-T G.652), MMF(ITU-T G.651), DSF(ITU- T G.653), NZ  SF(ITU-T G.655), BIF(ITU-T G.657), EDF
Fiber Material SiO2
Fiber Count Single
Cladding Diameter 80 - 150µm
Coating Diameter 100 - 1000µm
Fiber Cleave Length 8-16mm(Coating diameter:0-250µm);16mm(Coating diameter:250-1000µm)
Sleeve Length ≦60mm
Splice Mode Arcing/60 modes
Fiber Check Fiber cleaving angle/axis offset/loss/fiber alignment/focus etc.
Memory Space 5,000 splices/100 screenshots
Tension Test 2N
Electrode Life 5000 arcs
V-groove White LED
Splice Loss SMF/BIF≦0.02dB(typ.)/MMF≦0.01dB(typ.)/DSF/NZDSF/EDF≦0.04dB(typ.)
Return Loss >60dB
Splice Time ≦9 seconds
Boot Time 5 seconds
Heating Auto heating/18 seconds (Typical,0-240s adjustable)/20 modes
Battery 200+ (splice+heating) circles
Imaging System Dual CMOS cameras, 200x zoom
Power Saving Auto screen/power off(Adjustable)
Power Supply 4400mAhLithium Battery
Connectivity USB
Working Condition -25℃ - 50℃ / -30℃ - 70℃ (Working / Storage),
Humidity: 0 - 90%(Non-Condensing)
Altitude: 0 - 5000m,Wind Speed ≦15m/s

PACKAGES

No Name Qty
1 SP-FS36EA Fusion Splicer 1 set
2 Fiber Cleaver 1 pcs
3 Fiber Stripper 1 pcs
4 AC Adatpor 1 pcs
5 Li Battery 1 pcs
6 Charger 1 pcs
7 Cooling Tray 1 pcs
8 User Manual CD 1 pcs
9 Carrying Case 1 pcs
10 4-in-1 Fiber holder 1 pcs
11 USB data cable 1 pcs
