Event Dead zone as lower as 1.5meter,Muti measurement mode, support Touching LCD and pressing key.
•
Combined 1310nm+1550nm Testing Wavelength and 32dB+30dB Dynamic Range.1.3km-120km(0.8~74.5mi) Distance Range.
•
Warning function could prevent OTDR module from being damaged by optical signal in fiber;Adopts friendly input interface,totally simulate the computer keyboard input.
•
Realtime measuring function, convenient to monitor the splicing process;PC remote access and control function is available , which support the printing work of the measurement report.

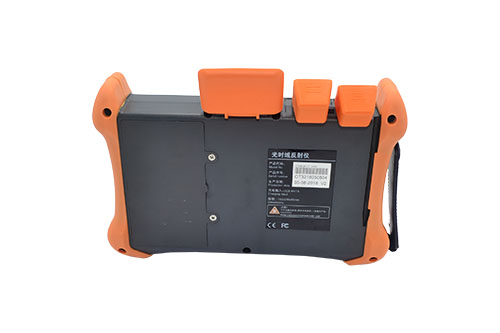

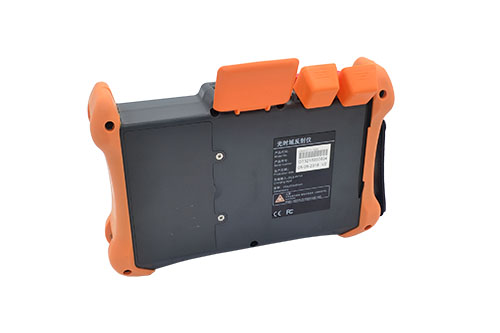

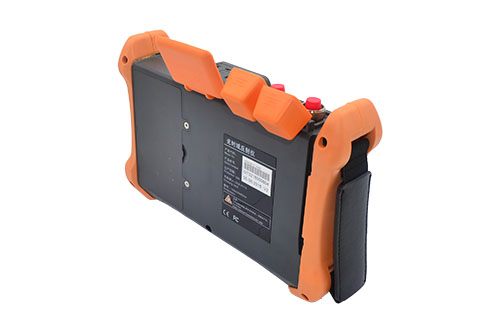

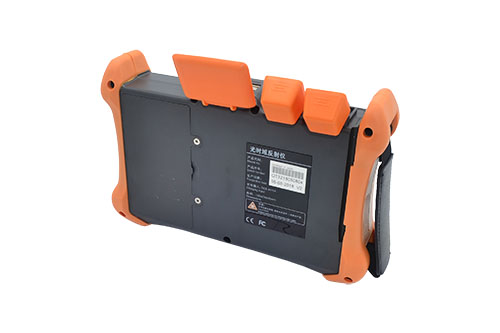

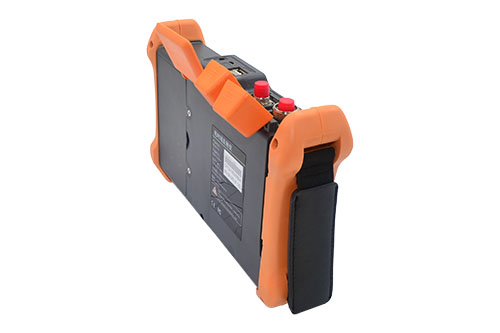

SP-OTDR32F-T1 Product Description
OTDR is a precision optical measuring instrument of Rayleigh scattering and Finel reflection transmission in fiber produced by laser backscatter principle is made, it is widely used in optical fiber, optical cable installation, maintenance and repair, monitoring applications. It can be used to measure the length, attenuation, quality and fault location of fiber optic cable.
The light in the optical fiber transmission, due to defects in doped fiber component inhomogeneity or fiber link itself, the optical pulse propagating in fiber Rayleigh scattering occurs, where a portion of the optical signal will be shot into the opposite direction along the veins are scattered back, so it is called the Rayleigh backscattering, through the observation of Rayleigh timing after the change of scattering light signal intensity, accurate measurement of the fiber optic cable to the loss distribution, the quality of the connection properties.
According to the theory of light transmission, when the light is in the process of communication, there are two kinds of transmission medium with different refractive index boundary (such as fracture or connector, fiber end), will Fresnel reflection, through the regular reception of this Fresnel reflection signal, can be accurately located along the length of the fiber discontinuous point. The size of the reflection depends on the refractive index difference and the smoothness of the boundary surface.
SP-OTDR32F-T1 series Optical Time Domain Reflectometer (OTDR) is an intelligent meter of a new generation for the detection of fiber communications systems. With the popularization of optical network construction in cities and countrysides, the measurement of optical network becomes short and disperse; SP-OTDR32F-T1 is specially designed for that kind of application. It’s economic, having outstanding performance.
Whether you want to detect link layer in the construction and installation of optical network or proceed efficient maintenance and trouble shooting, SP-OTDR32F-T1 can be your best assistant.
Combined 1310nm+1550nm Testing Wavelength and 32dB+30dB Dynamic Range.1.3km-120km(0.8~74.5mi) Distance Range.
•
Warning function could prevent OTDR module from being damaged by optical signal in fiber.
•
Integrated 10mw Visual Fault Locator.
•
Support English/Chinese/Spain Language, adopts friendly input interface,totally simulate the computer keyboard input.
•
Integrated with 8GB internal memory, more than 80,000 groups curve storage.
•
PC remote access and control function is available , which support the printing work of the measurement report.
SP-OTDR32F-T1 shows the back-scatter light power of the optical signal relative to the distance. With this information, the SP-OTDR32F-T1 could measure a series of important information of an optical fiber such as the quality of the line, distance of the line and etc.
SP-OTDR32F-T1 series of OTDR with the industry's most simple and efficient operation, the main operating interface contains only 5 menu options. After optimizing the mode of operation, more in line with the user's daily habits; at the same time, unique in the industry of similar products in the key and touch screen full function mode of operation, making the operation more convenient, the tedious process of eliminating the frequent user moves the cursor.
Package
SP-OTDR32F-T1 Main unit, Power adapter,7.4V/6.6AH Lithium battery, FC/UPC and SC/UPC adapter, USB cord, User guide, CD disk, carrying case,Clearn Wipes.

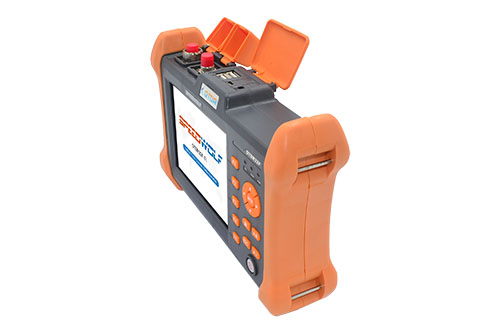

5.6-Inch outdoor-enhanced touch screen
The printing work
Rich UI design
5.6-inch touch screen is sufficient for all your work,Accuracy,Convenient,Fast and easy to use,He is definitely a assistant you can do well.
PC remote access and control function is available , which support the printing work of the measurement report.
User-friendly UI design makes your work easy.
Multiple interfaces
7.4V 6600mah lithium battery
Softbag

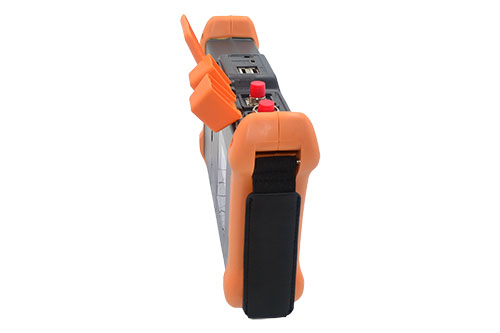

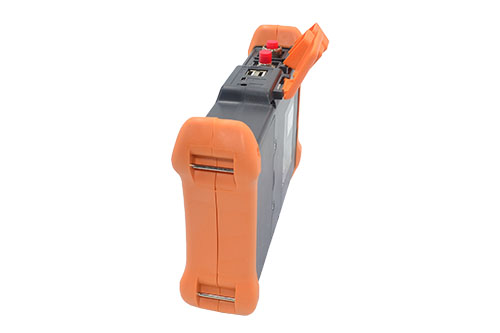

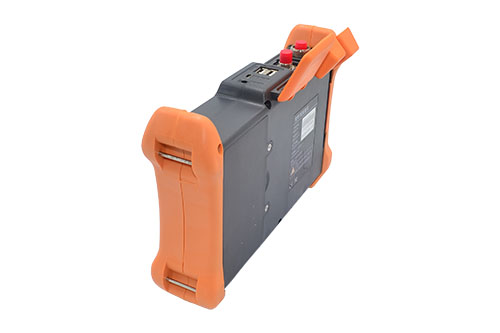

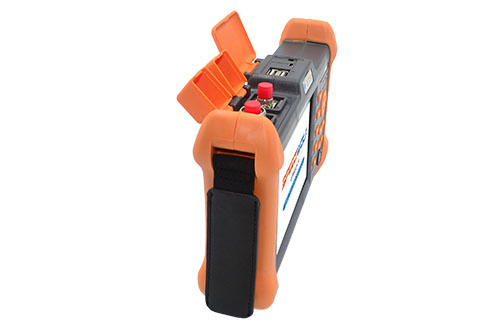

SP-OTDR32F-T1 has Multiple interfaces,include 3 USB ports(Type A×2，Type B×1), 10mW@CW/2Hz Visual Fault Locator (VFL) and OTDR interface,We also provide 1xFC/UPC and 1xSC/UPC adapter.
7.4V 6600mah lithium battery can meet one day's work at arious environments.
A good bag allows you to conveniently take OTDR anywhere and protect it well.
|
