IP65 protection level, Event Dead zone as lower as 1.5meter,Muti measurement mode, support Touching LCD and pressing key.
•
1310nm+1550nm Testing Wavelength and 32dB+30dB Dynamic Range,1.3km-120km(0.8~74.5mi) Distance Range.
•
SP-OTDR32F-T4 is specially designed for that kind of application. It’s economic, having outstanding performance.
•
Realtime measuring function, convenient to monitor the splicing process;PC remote access and control function is available , which support the printing work of the measurement report.
SP-OTDR32F-T4 Product Description
OTDR is a precision optical measuring instrument of Rayleigh scattering and Finel reflection transmission in fiber produced by laser backscatter principle is made, it is widely used in optical fiber, optical cable installation, maintenance and repair, monitoring applications. It can be used to measure the length, attenuation, quality and fault location of fiber optic cable.
OP-OTDR32F series of optical time domain reflectometer (OTDR) is a new generation of intelligent optical fiber measuring instrument designed for the testing of optical fiber communication system. This product is mainly used to measure various types of optical fiber, optical cable length, loss, and other parameters of the quality of the connection; can quickly in the optical fiber link in the event points, fault location. It can be widely used in the construction, maintenance and emergency repair of optical fiber communication system. In the construction of fiber optic network installation, or follow-up rapid and efficient maintenance and troubleshooting test, this product can provide you with the highest performance solutions.
The appearance of this novel instrument; OTDR has the industry's most simple interface, intuitive operation; in similar products, buttons and touch screen dual mode of operation, greatly simplifies the user; analysis of a type unique, quick access to the test result, the event is displayed in a tabular form on the main interface, the relevant information including: event type, event location, loss, reflection, attenuation, event between total loss; machine adopts intelligent power management mode, large capacity lithium battery makes the machine work more than 10 hours, very suitable for the long-term field environment.
In addition to the OTDR function, the instrument can also be equipped with optical power meter and 10mW visual fault location (VFL)

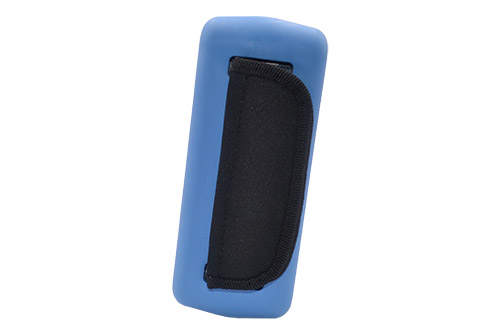

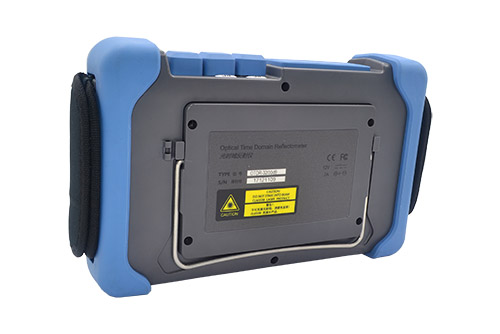

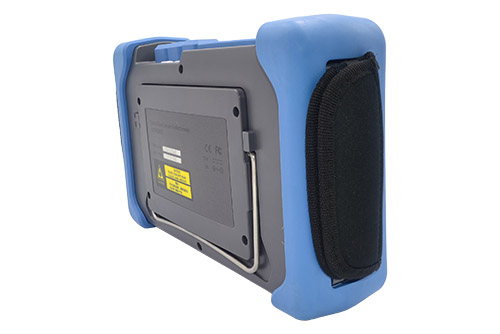

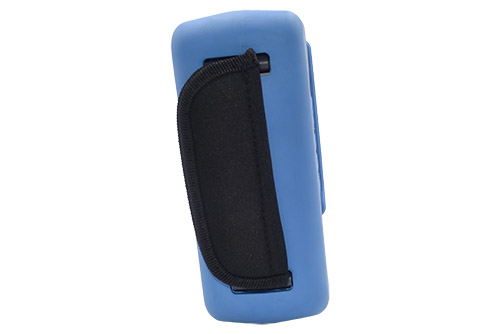

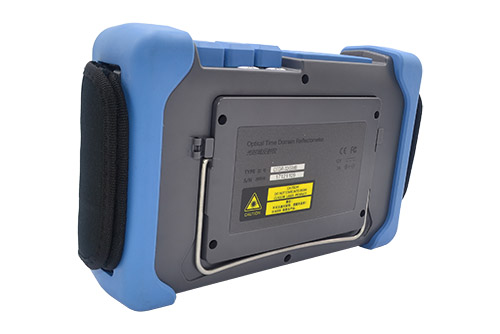

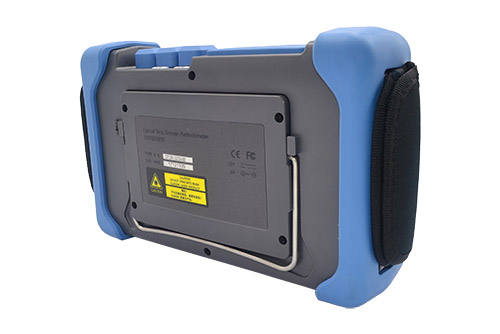

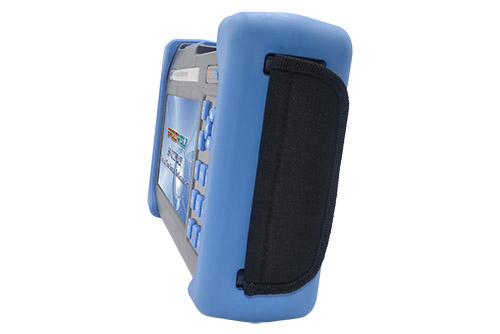

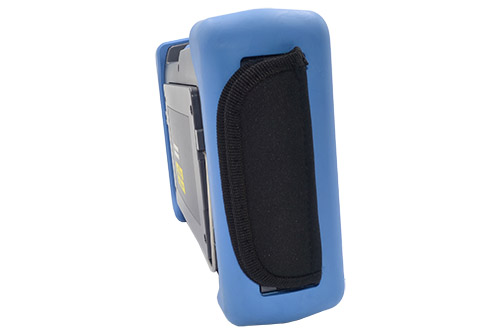

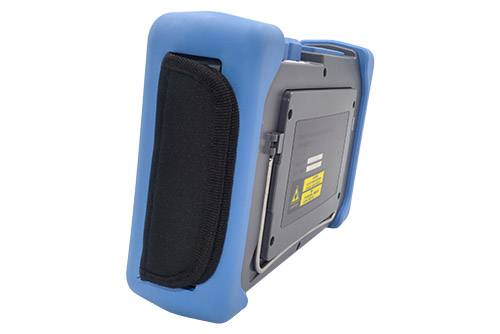

↑ 3D View ↑
Parameter
•
Display:7" TFT-LCD outdoor-enhanced touch screen with LED backlight
SPEEDWOLF 1310nm 1550nm 32dbm 30dbm otdr Fiber Optic Tester Tool with VFL and Optical Power Meter
SP-OTDR32F-T4 is manufactured with patience and carefulness, following the national standards to combine the rich experience and modern technology, subject to stringent mechanical, electronic and optical testing; in the other way, the new design makes OP-OTDR32F-T4 more smart and compact and multi-purpose.
Package
OP-OTDR32F-T4 Main unit, power adapter,7.4V 10AH Lithium battery, FC/UPC and SC/UPC adapter, USB cord,8GU-disk, User guide, CD disk, carrying case.
OP-OTDR32F-T4 shows the back-scatter light power of the optical signal relative to the distance. With this information, the OP-OTDR32F-T4 could measure a series of important information of an optical fiber such as the quality of the line, distance of the line and etc.
· Muti measurement mode(Auto Mode Test, Manual Mode Test, Averaging Test Mode, Real-time Test Mode…), support Touching LCD and pressing keys
· Warning function could prevent OTDR module from being damaged by optical signal in fiber.
· Realtime measuring function, convenient to monitor the splicing process.
· Integrated 10mw Visual Fault Locator and 800~1700nm Power Meter.
· Support English/Chinese input, adopts friendly input interface, totally simulate the computer keyboard input.
· 4GB internal memory+8G U-disk, more than120,000 groups curve storage.
· PC remote access and control function is available, which support the printing work of the measurement report.
7-Inch outdoor-enhanced touch screen
The printing work
Rich UI design
7-inch anti-reflection touch screen is sufficient for all your work,Accuracy,Convenient,Fast and easy to use,He is definitely a assistant you can do well.
PC remote access and control function is available , which support the printing work of the measurement report.
SP-OTDR32F-T4 series of OTDR with the industry's most simple and efficient operation, the main operating interface contains only 5 menu options. After optimizing the mode of operation, more in line with the user's daily habits; at the same time, unique in the industry of similar products in the key and touch screen full function mode of operation, making the operation more convenient, the tedious process of eliminating the frequent user moves the cursor.
Multiple interfaces
7.4V 10,000mah lithium battery
Softbag
SP-OTDR32F-T4 has Multiple interfaces,include 2 USB ports(Type A×1，Type B×1), 10mW@CW/2Hz Visual Fault Locator (VFL),800~1700nm Power Meter and OTDR interface,We also provide 1xFC/UPC and 1xSC/UPC adapter.
7.4V 10000mah lithium battery can meet one day's work at arious environments.
A good bag allows you to conveniently take OTDR anywhere and protect it well.
SP-OTDR32F-T4 Product Paramemers
Dimension
253×168×73.6mm
1.5kg (battery included)
Display
7 inch TFT-LCD with LED backlight (touch screen function is optional)
Interface
1×RJ45 port, 3×USB port (USB 2.0, Type A USB×2, Type B USB×1)
Backlight off: Disable/1 to 99 minutes
Auto shutdown: Disable/1 to 99 minutes
Data Storage
Internal memory: 4GB (about 40,000 groups of curves)
Language
User selectable (English, Simplified Chinese, traditional Chinese, French, Korean, Russian, Spanish and Portuguese-contact us for availability of others)
Environmental Conditions
Operating temperature and humidity: -10℃~+50℃, ≤95% (non-condensation)
Storage temperature and humidity: -20℃~+75℃, ≤95% (non-condensation)
Proof: IP65 (IEC60529)
Accessories
Standard: Main unit, power adapter, Lithium battery, FC adapter, USB cord, User guide, CD disk, carrying case
Optional: SC/ST/LC adapter, Bare fiber adapter
VFL Module (Visual Fault Locator, as standard function)
Wavelength (±20nm)
650nm
Power
10mw,CLASSIII B
Range
12km
Connector
FC/UPC
Launching Mode
CW/2Hz
PM Module (Power Meter, as optional function)
Wavelength Range (±20nm)
800~1700nm
Calibrated Wavelength
850/1300/1310/1490/1550/1625/1650nm
Test Range
Type A: -65~+5dBm (standard); Type B: -40~+23dBm (optional)
Telcordia universal, SOR, issue 2 (SR-4731)
OTDR: User selectable automatic or manual set-up
Testing Modes
Visual fault locator: Visible red light for fiber identification and troubleshooting
Light source: Stabilized Light Source (CW, 270Hz, 1kHz, 2kHz output)
Field microscope probe
Fiber Event Analysis
-Reflective and non-reflective events: 0.01 to 1.99dB (0.01dB steps)
-Reflective: 0.01 to 32dB (0.01dB steps)
-Fiber end/break: 3 to 20dB (1dB steps)
Other Functions
Real time sweep: 1Hz
Averaging modes: Timed (1 to 3600 sec.)
Live Fiber detect: Verifies presence communication light in optical fiber
Trace overlay and comparison
|
