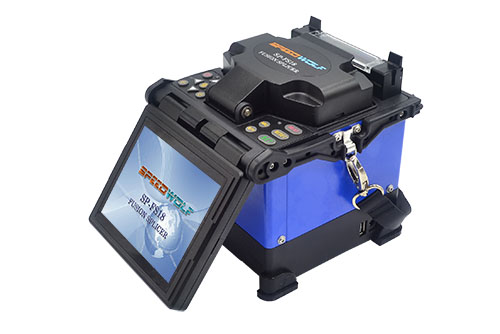

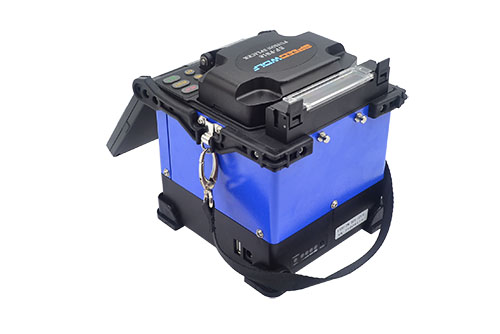

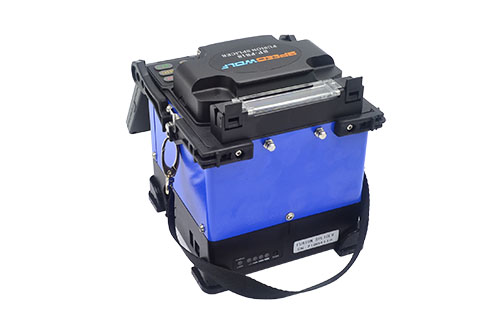

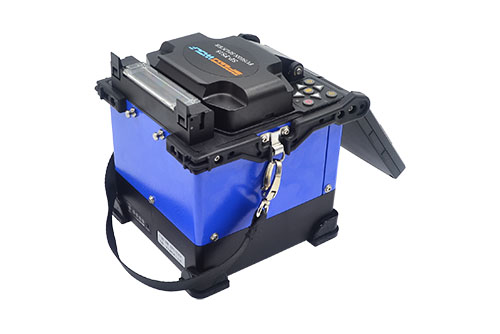

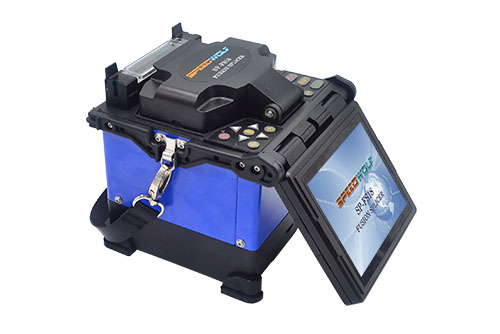

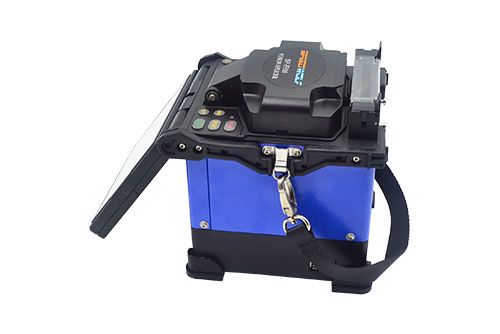

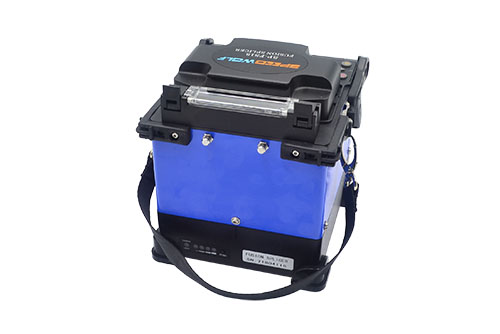

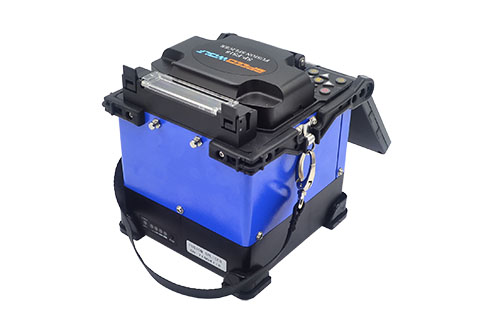

SPEEDWOLF 5" LCD High Precision Fiber Optic Fusion Splicer Machine for SM, MM, NZ-DS, EDF Fibers with Optical Fiber Cleaver and Automatic Focus Function
Condition:New Price:$1,299.00&FREE Shipping Model:SP-FS18 Only 3 left in stock-order soon.(US) Only 2 left in stock-order soon.(CA)
Item location:
Lebanon,TN US(USA) Milton,ON CA(CA)
Ships to:
• United States(From USA Local within 1-5days)
• Canada(From Canada Local within 1-5days)
• Other Countries(Fron China within 5-15days)
Payments:
|
Returns:
30 day returns. Buyer pays for return shipping.
Guarantee:
Money Back Guarantee
•
Widely Application--SPEEDWOLF SP-FS18 Fusion Splicer is core-to-core alignment single fiber splicer, which is designed for splicing single-count optical fibers: SM (G.652/657), MM (G.651), DSF (G.653), NZDSF (G.655) for telecommunication use, PON/FTTx networks, etc.Meanwhile, SP-FS18 have three Splicing modes: auto, half-auto, manual.It is easy to use.
•
5.0 inch TFT LCD display--High-resolution true color Rotary outdoor-enhanced anti-glare 5.0 inch TFT LCD display.high contrast and vividness. Simultaneous display of X and Y axes(300 X or Y view, 200 X and Y view).
•
Plentiful Accessories--Built-in 11.1V 52000mah high capacity battery, support 200-500 times splicing and heating, to meet one days’work. meanwhile 6pcs Long Electrode Lifetime, Each pair electrode life is up to 8000 times without splicing quality loss.
•
Reduced splicing time and Heating time--Only 8 seconds splicing time, only 30 seconds Heat-Shrinking.
•
High Quality Splicing Accuracy--The advanced core to core fiber profile alignment system(PAS),and it guarantees low losses---Splicing Loss: SMF/BIF: ≤0.02dB(typ.); MMF: ≤0.01dB(typ.); DSF/NZDSF: ≤0.04dB(typ.);Return Loss:>60dB.
SP-FS18 Product Description
Shenzhen SPEEDWOLF Technology Co., Ltd. is a company specializing in the production of optical fiber fusion splicer, optical fiber cleaver, OTDR, light source, optical power meter, and optical fiber fixture, and other optical communication instrument high-tech enterprises.
Company production of SP-FS16,SP-FS18,SP-FS19 series fiber splicing machine and OP-OTDR32F series OTDR is not only widely used in China Telecom, China Mobile, Unicom, radio and television major domestic telecommunications operators, but also exported to South America, Europe, Russia, Southeast Asia and Africa and other parts of the world.
SPEEDWOLF SP-FS18 Fusion Splicer is core-to-core alignment single fiber splicer, which is designed for splicing single-count optical fibers: SM (G.652/657), MM (G.651), DSF (G.653), NZDSF (G.655) for telecommunication use, PON/FTTx networks, etc. Splicing takes only 8 seconds, and heating takes only 15 seconds. The device is optimized for splicing under severe weather conditions, it is protected from stress and shock. It may be powered from 100/240V AC, or using a battery (included). where you may place the needed tools: a cleaver, a stripper, sleeves, etc.
SPEEDWOLF SP-FS18 fusion splicer adopt high-speed image processing technology and special precision- positioning technology,automatically finish the whole process of fiber fusion in 8 seconds typically, LCD monitor displays all steps of fiber fusion clear at a glance.
Widely used for SM and MM Quartz Fiber with diameter 80-150μm, coating layer diameter 0.1-1.0mm and bare fiber length 16mm more or less. Ideal tools for construction and maintenance of fiber and cable in both field and laboratory applications.
Package Include
1*Fusion Splicer,1*Fiber Cleaver,1*Fiber Stripper,1*100-240V AC adapter,1*11.1V 52000mah Li Battery,4*Spare Electrodes,1*Cooling Tray,1*User Manual CD,1*Plastic Carrying Case
Features
• High-resolution true color Rotary outdoor-enhanced anti-glare 5.0 inch TFT LCD display.high contrast and vividness. Simultaneous display of X and Y axes.
• The advanced core to core fiber profile alignment system(PAS).
• Real time calibrating system ,parameter needn’t be adjusted.
• X/Y axes were displayed meanwhile,300 X or Y view, 200 X and Y view.
• Reduced splicing time and Heating time--Only 8 seconds splicing time, only 30 seconds Heat-Shrinking.
• Battery capacity was display in real time, precisely.
• Built-in 11.1V 52000mah high capacity battery, support 200-500 times splicing and heating, to meet one days’work.
• 6pcs Long Electrode Lifetime, Each pair electrode life is up to 8000 times,without splicing quality loss.
• The new wind-protective lid, heater, fiber holders design. Increased waterproof, dust and shock resistance, may be used under severe environment conditions. Max wind velocity of 20m/s.
• Three Splicing modes: auto, half-auto, manual.
• Built-in super high-brightness LED supply convenience for day and night work.
• Auto calculate splicing loss,Splice Loss: SMF/BIF: ≤0.02dB(typ.); MMF: ≤0.01dB(typ.); DSF/NZDSF: ≤0.04dB(typ.)
• Small bulk and light weight, only 1.98kg include battery.
• New comfortable High-strength engineering plastics carrying case,It can protect the fusion splicer and avoid the damage of the fusion splicer.meanwhile,The case may be used as a simple working table. Operation manual is installed into the splicer.
• 12,000 results Storage
Splicing Fiber Type
11.1V 5200mah Li-ion Battery
Optical Fiber Cleaver with 16 Surface Blade
SPEEDWOLF SP-FS18 Fusion Splicer is core-to-core alignment single fiber splicer, which is designed for splicing single-count optical fibers: SM (G.652/657), MM (G.651), DSF (G.653), NZDSF (G.655) for telecommunication use, PON/FTTx networks, etc.
SPEEDWOLF SP-FS18 Fusion Splicer built-in 11.1V 52000mah high capacity battery, support 200-500 times splicing and heating after full charge, to meet one days’work. and it is easy to replace battery.
Optical Fiber Cleaver is imported from Korea developed a technology for Splice can meet the heat-fusible fiber a multi-purpose cutters;and it using high-strength blade surface 16 points, longer life, comes with triple fixtures can be incision line, pigtails and bare fiber.
Weight and Dimension
Plentiful Accessories
Quality Control
SP-FS18 have small size and light weight---The size is only 135(L)×158(W)×155(H)mm/5.3(L)x6.2(W)x6.1(H)inch,the weight is only 1.98KG including batter.
1*Fusion Splicer,1*Fiber Cleaver,1*Fiber Stripper,1*100-240V AC adapter,1*11.1V 52000mah Li Battery,4*Spare Electrodes,1*Cooling Tray,1*User Manual CD,1*Plastic Carrying Case.
The hallmark of SPEEDWOLF is quality. All of our commitments,actions and products must be recognized as an expression of quality. Our most important criterion of quality is the satisfaction of our customers.
SP-FS18 Product Paramemers
Model
SP-FS18 Handheld FTTH Fusion Splicer
Splicing Type
SM, MM, DS, NZDS
Splicing Loss
0.02dB(SM)，0.01dB(MM)，0.04dB(DS)，0.04dB(NZDS)
Return Loss
>60dB
Splicing Mode
Manual, Half Auto, Auto
Fiber Alignment
Core to Core Alignment by PAS technology
Applicable Fiber
Cable indoor and 0.25mm,0.9mm fiber, SC connector(option)
Splicing Time
≤9s
Heat Time
≤30s
Cleaved Length
8～16mm
Fiber Image/ Magnification
300/200
View Display
5 inch digital high-quality LCD screen
Tension Test
Standard 2N (option)
Heat Shrinkable Sleeve
60mm, 40mm and serials heat Shrinkable Sleeve
Battery Capacity
200 cycles splicing and heating, 3 hours charging time
( splicing and charging at same time)
Battery Life
Cycling charge 300-500 times, easy to replace battery
Electrodes Life
3000, easy to replace electrodes
Power Source
≤20W
Interface
USB Convenient data download and software update
Construction Lighting
Built in high brightness, wide range of lights, easy to operate at night
Power supply
Built in lithium battery 5200mAh 11.1V; external adapter, input: AC100-240V, output: DC13.5V/4.5A
Operating Condition
0-5000m above sea level, Temperature: -10-60℃,
Humidity:0～95%RH (No dew)
|
